Robust Comfort Rests earned their name because your hand fits comfortably in the radius of the rest, whether you use an overhand or underhand grip.

You can drop the handle of your tools at a angle greater than 45 degrees for shear scraping and skew cutting action.

4, 6, 9, 12 and 15 widths are available in sizes to fit most 16-25″ lathes.

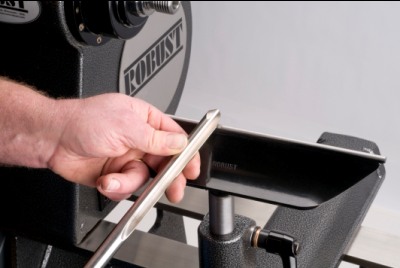

Comfort Rest UnderhandComfort Rest Underhand

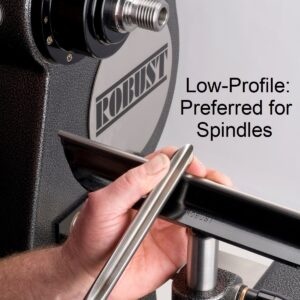

Low Profile RestLow Profile Rest


Low Profile Rests are for spindle turners that like to wrap their hand around the tool rest. They are also your choice for smaller lathes.

Like the Comfort rests, you can also drop the handle of your tools at a greater than 45 degree angle.

4, 6, 9 and 12 widths are available in sizes to fit most 12-25″ lathes.

Curved Tool Rests help you follow the curve of a conventional open bowl. Both and Interior and Exterior style if available.

Sizes are available to fit most 16-25″ lathes.

The straight-line overhang of the interior rest is about 9.5″. Straight line overhang of the exterior rest is about 5.5″

The radius of both rests is the same, about 8″.



Internal Curve Tool RestInternal Curve Tool Rest
External Curve Tool RestExternal Curve Tool Rest


Box Rests are helpful when using a scraper or captive hollow rig to shape the inside of a

turned box or other hollow form.  Robust box rests are made from solid ½” thick laser cut

steel and relieved on the edge for clearance.  They are offset so that you can do the rim and

the inside all in one set up.  A removable pin is provided to keep you from going off the

edge.  Sizes to fit most lathes.  The rest is 1.5” wide and overhangs 5”.

Box rest CompositeBox rest Composite

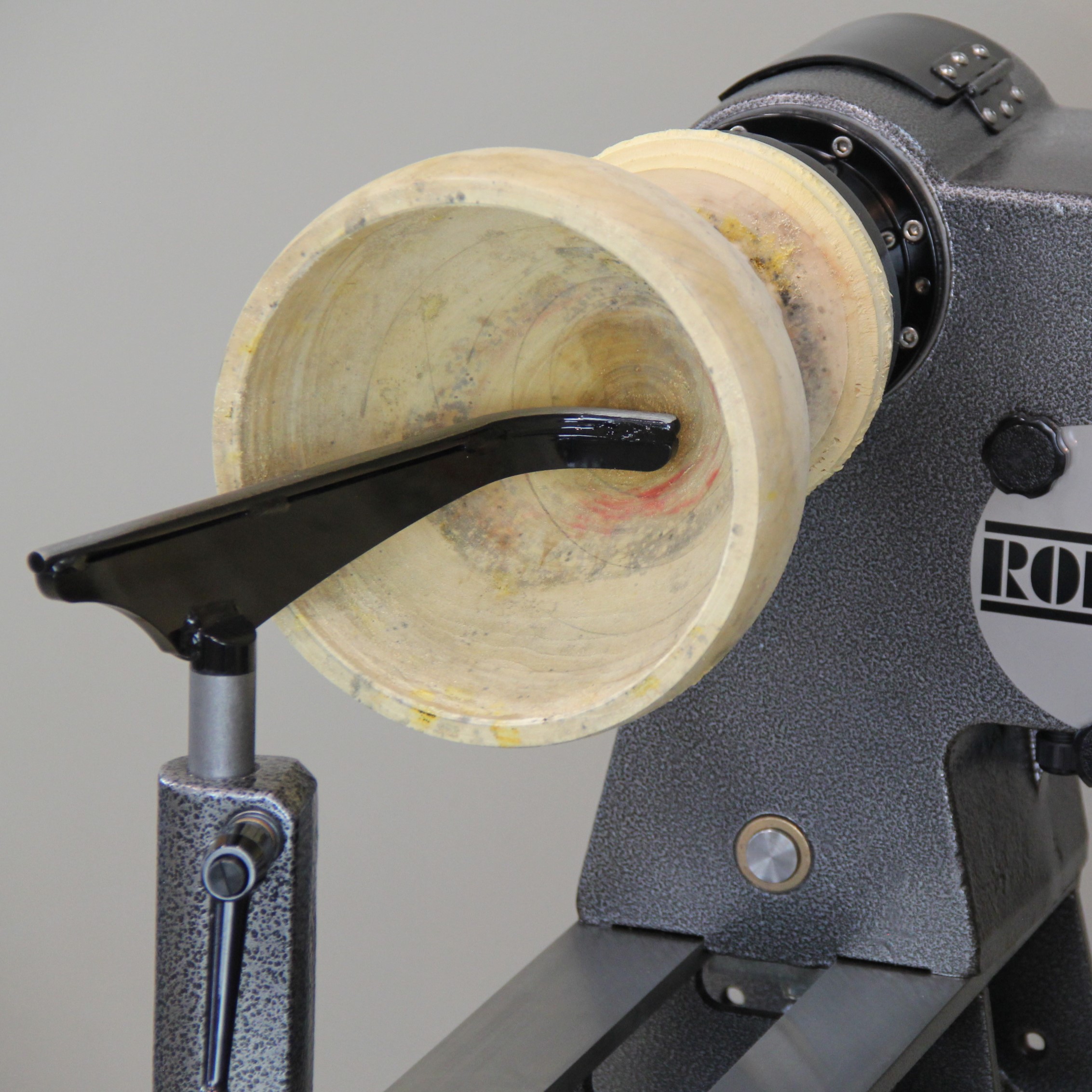

J-Rests work great for conventional bowls and deeper open forms like vases and hats.

14″ J-Rests are available to fit most 16-25″ lathes and come with a 1″ diameter tool post.

Straight line overhang of the 14″ J-Rest is about 9″ on the long side and about 3.25″ on the short side.

9″ J-Rests are available to fit most 12-25″ lathes and come with a 1″ diameter tool post.

Straight line overhang of the 9″ J-Rest is about 5.25 ” on the long side and about 2.25″ on the short side.

Mini J-Rests are the 9″ J-Rest fit with a 5/8″ post.

J-Rest 1J-Rest 1


Please note, lathes with a 25mm diameter post such as the Grizzly or Laguna 1847 or their clones, are easily mistaken for 1” diameter posts, which will not fit.

25mm and 30mm Metric sizes are available special order, as are ¾”, 7/8” 1 1/8” and 1 ¼”.

Extra charges will be incurred for special made toolrests.  Please place orders for specials over the phone.

Two_Post_Toolrest


Extra-long tool rests with two posts, up to 36” long, are also made to order. Please call to order.

METRICS AND SPECIALS

Custom Post Sizes: If you need a toolrest with a non-standard post diameter or length, the following rates apply:

  • 25 mm  w/$10 upcharge
  • 30 mm  w/$20 upcharge
  • ¾”  w/$10 upcharge
  • 7/8” w/$10 upcharge
  • 1 – 1/8”  w/$10 upcharge
  • 1 – ¼” w/$10 upcharge
  • Extra long to fit certain imports any diameter, additional $10 upcharge

Two Posted Rests:  We also make custom two posted tool rests up to 36” long.  Cost is a flat fee of $90 plus $4 inch.  For instance, a 30″ toolrest is $210. If the posts are not standard 5/8″ 0r 1″, the above custom post charges will be applied for each post.

Ordering Custom Toolrests: You must call in your order at 608-924-1133.  Please have the make and model of your lathe available, as well as the Overall Height – measured from the top of the toolrest where the tool rests to the bottom of the post.  Please allow 10-14 days for your custom toolrest to be made.  Shipping charges will apply.
